Quick Details

  • Condition: New
  • Type: Raymond Mill, New
  • Motor Type: AC Motor
  • Power(W): 18.5+15+2.2 KW
  • Capacity(t/h): 0.7-3t/h
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: Shuguang
  • Model Number: 3R 2615
  • Dimension(L*W*H): 4.5*3.5*5 m
  • Weight: 3.5 t
  • Certification: CE
  • Warranty: no more than 15 monthes
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product: mineral powder processing machine
  • Usage: For grinding ores to powder
  • Application: paint,pipe,cosmetics,plastic parts,floor etc
  • Grinding materials: gypsum,talc,calcite,limestone,marble,dolomite
  • Raw material size: less than 25mm
  • Outlet size: 60-325 mesh
  • Lifetime: 8-10 years
  • Spare parts: ring,roller,shovel blade etc
  • Optional things: jaw crusher,elevator,hopper,feeder

Packaging & Delivery

Packaging Details nude packing,20 or 40 feet container
Delivery Time In stock,3-7 days after receiving your 30% advanced payment



High strength 3R2615 mineral powder processing machine





Brief Introduction



1.Application: paint,pipe,cosmetics,plastic parts,floor etc

2.Suitable materials: gypsum,talc,calcite,limestone,marble,dolomite,iron ore,cement,granite,clay,kaolin and so on( nonflammable and non-explosive materials with humidity below 6% and Mohs hardness less than 7)

3.Feed size:≤25mm (if you material is big,please add a jaw crusher)

4.Outlet size:60-325 mesh(if you need other fineness,we also have other type mill,please contact)

5.The whole production line include:jaw crusher,elevator,hopper,feeder,raymond mill,electric cabinet etc.

6.Power:Different modes is different,please contact us and ask.  copper powder making machine





Technical Parameters



Model

3R3015

3R2715

3R2615

3R2115

Feeding size(mm)

≤25

≤25

≤20

≤15

Fineness of finished product(mm)

0.125-0.044

0.125-0.044

0.125-0.044

0.125-0.044

Production(t)

1-4

0.9-3.5

1.7-3

0.5-2

Speed of axis(r/min)

160

160

160

180

Dia of Ring (mm)

860

830

780

650

Dia of Roller(mm)

300

270

260

210

Roller height(mm)

150

150

150

150

Main motor (KW)

Y225m-8-22

Y225m-8-22

Y225s-8-18.5

Y200L-8-15

Fan motor (KW)

Y180m-4-22

Y160L-4-18.5

Y160L-4-15

Y160m-4-11

Analysis motor(KW)

Y112m6-2.2

Y112m6-2.2

Y112m6-2.2

Y112m6-2.2



Model

6R4525

5R4121

5R4119

4R3218

4R3216

Feeding size(mm)

≤30

≤30

≤25

≤30

≤30

Fineness of finished product(mm)

0.125-0.044

0.125-0.044

0.125-0.044

0.125-0.044

0.125-0.044

Production(t)

13-40

8-15

5-10

2.5-9

2-8

Speed of axis(r/min)

82

105

105

130

130

Dia of Ring (mm)

1620

1270

1270

970

970

Dia of Roller(mm)

450

410

410

320

320

Roller height(mm)

250

210

190

180

160

Main motor (KW)

Y315m-4-132

Y280s-4-75

Y280s-4-75

Y225s-4-37

Y225s-4-37

Fan motor (KW)

Y315m-4-132

Y250m-4-75

Y250m-4-75

Y200L-4-37

Y200L-4-37

Analysis motor

Y160m-4-11

Yc200-4-7.5

Yc200-4-7.5

Yc120-4-5.5

Yc120-4-5.5

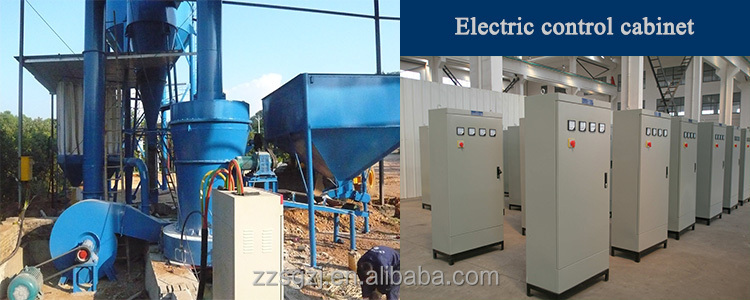

Whole production line introduction


Raymond mill structure and working principle

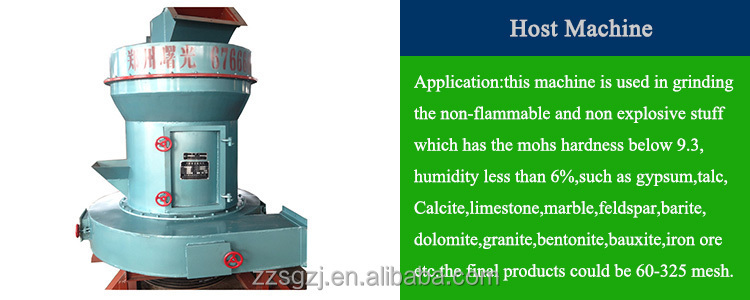

The whole raymond mill line include main machine,powder collector,dust catcher,fan,reducer.

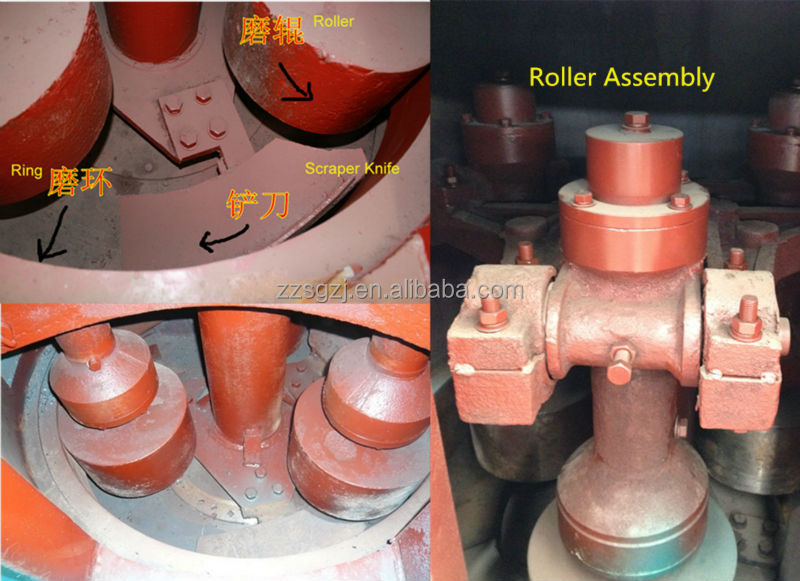

The inner of the main machine include axis,roller,grinding ring,shovel blade and so on.


Working Principle of Raymond Mill (Grinding Mill):

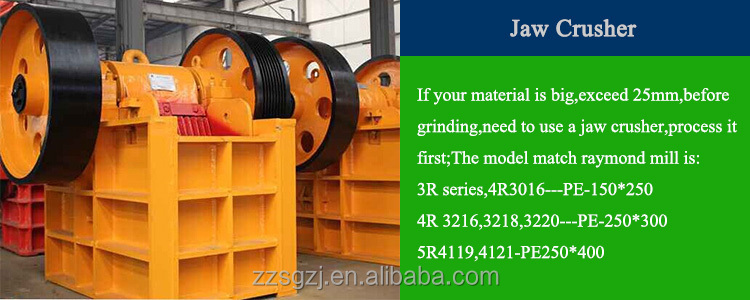

A.Raw material is crushed by jaw crusher to the size required which is suitable for the Raymond Mill (Grinding Mill) ,

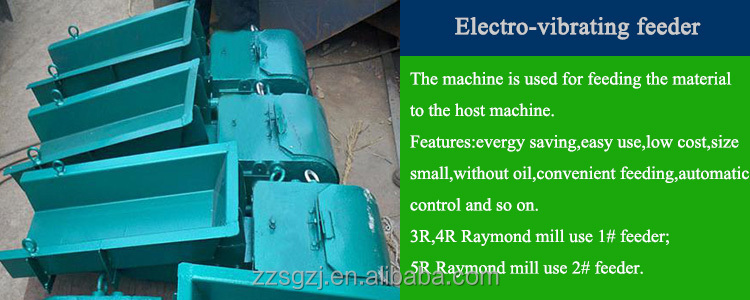

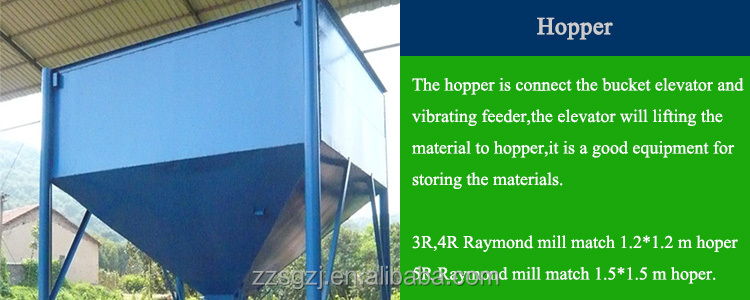

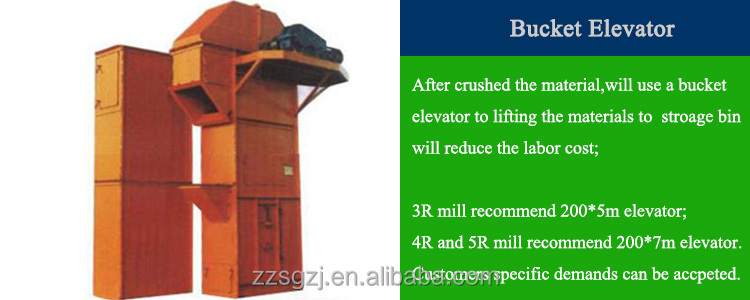

B.Then the crushed materials are elevated into a hopper from which the material is transported through the electro-magnetic vibrating feeder evenly and continuously into the grinding chamber for grinding mill. The rollers oscillate outward to press the ring because of the centrifugal force and the shovel scoops up the materials, send to the middle between ring and roller to accomplish the grind.

C.After this, the ground stuff are carried by the air from the blower into the powder separator (Analyzer Machine) for screening. The fine powers are blow into the cyclone powder collector and are poured out through the output-powder valve as the final products, and the corase stuff after the screening will be recycled back into the grinding chamber for regrinding. The set’s airflow system is closely sealed up and circulated under condition of negative and positive pressure.





Customer working site and visit

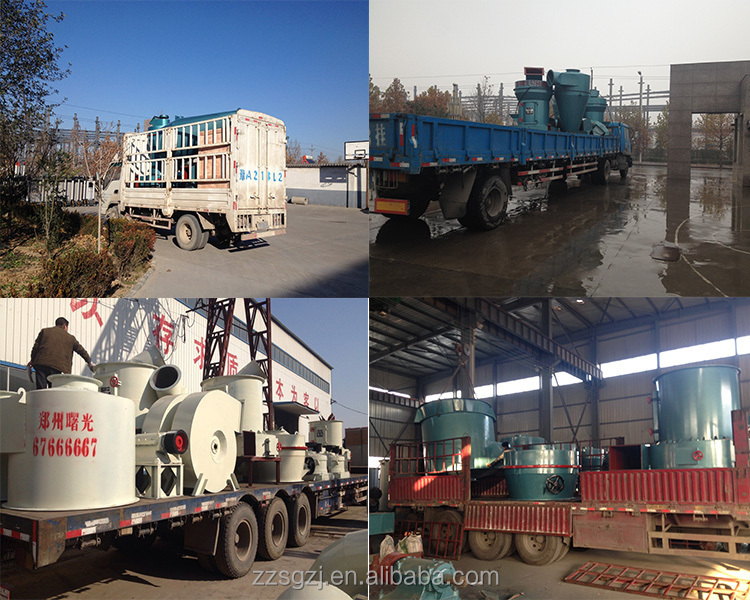

Delivery pictures



About Us



Zhengzhou ShuGuang Heavy Machinery Co.,Ltd

1.Zhengzhou Shuguang Heavy Machinery,founded in 1993,is an integral system that produce R&D,production and sales.

2.We are located in 19th,Longjiang west road,Shangjie district,Zhengzhou city,Henan,China.

3.Our Company produce Raymond mill,Superfine Grinding mill,Three ring micro powder mill,Rotary dryer,Ball mill,Jaw crusher,Impact crusher,Hammer crusher,Cone crusher,Coal gasifier,Vibrating Scree,Vibrating Feeder,stone and sand production line etc.

4.Our products are well known to the international market such as America,Italy,Chile,Sri Lanka,Australia And so on.

5.We warmly welcome and expect strong support from more customers,We believe that science and technology create brand and integrity creates glory.We will serve and repay our society as always be more excellent products.



Contact Us



If you are looking for this machine,please contact us now!

we would like to send you more details and best price,in order to save your time,at the same time,please tell us your requirement:

such as material type,capacity,material size,fineness and so on,thanks!  copper powder making machine
