Quick Details

  • Condition: New
  • Type: Raymond Mill
  • Motor Type: AC Motor
  • Power(W): 15KW
  • Capacity(t/h): 0.5T-2T
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: Shuguang
  • Model Number: 3R2115
  • Dimension(L*W*H): 4.5M*3.5M*5M
  • Weight: 3T-50T
  • Certification: ISO CE SGS
  • Warranty: 12 Months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Application: Construction
  • Life time: 8-10years
  • Product name: Gold Ore Grinding Machine
  • Spare parts supplying: Lifelong Provide
  • After sale service: Engineers available to service in overseas
  • Rotate speed of central axis: 160r/min
  • Diameter of ring: 830mm
  • Diameter of roller: 270mm
  • Roller height: 150mm
  • Color: Customerized

Packaging & Delivery

Packaging Details Packing by wooden case or client's packing requirement
Container transport
Delivery Time About 20-30 Working Days

Good Raymond Grinding Mill For Sale

Product Description



Application of Raymond mill factory



1.Raymond mill is widely used for nonflammable and nonexplosive materials with Moh’s hardness below grade 9.3,moisture content of less than 6%, such as,



2.Quartz,recrystal,calcite,potashfeldspar,talc,marble,limestone,dolomite,fluorite,lime,activated clay,activated carbon,bentonite,kaolin,cement,phosphate ore,gypsum,graphite,glass,manganese ore,titanium ore,copper ore,chrome ore,refractory materials,thermal insulation materials,coal coke,coal powder,carbon black,pottery clay,titanium dioxide,ferric oxide.



3. Final size is between 60 mesh and 325 mesh(0.044mm-0.125mm), some parts can be 1000 mesh(0.013mm).

Working principle of Raymond mill factory



1.Large materials is crushed by the crusher and then put into the hopper by the elevator



 2.The crushed materials is evenly entered the main engine.



3.The materials is crushed again by the rotation of the roller.



4.Fine powder is put into the analytical engine for the separation, the required powder enters the powder collector and unqualified powder will be returned for regrinding.



Features of Raymond mill factory



1.The whole plant occupied small area, and it is an independent production system from the processing of raw material to the packing of final products.



2.Compared with other grinding mills, its passing ratio achieves 99%.



3.Feed the materials evenly by electromagnetic vibrating feeder,easy to operate

4.Transmission of main frame adopts airtight reducer,drives smoothly and operate reliably.

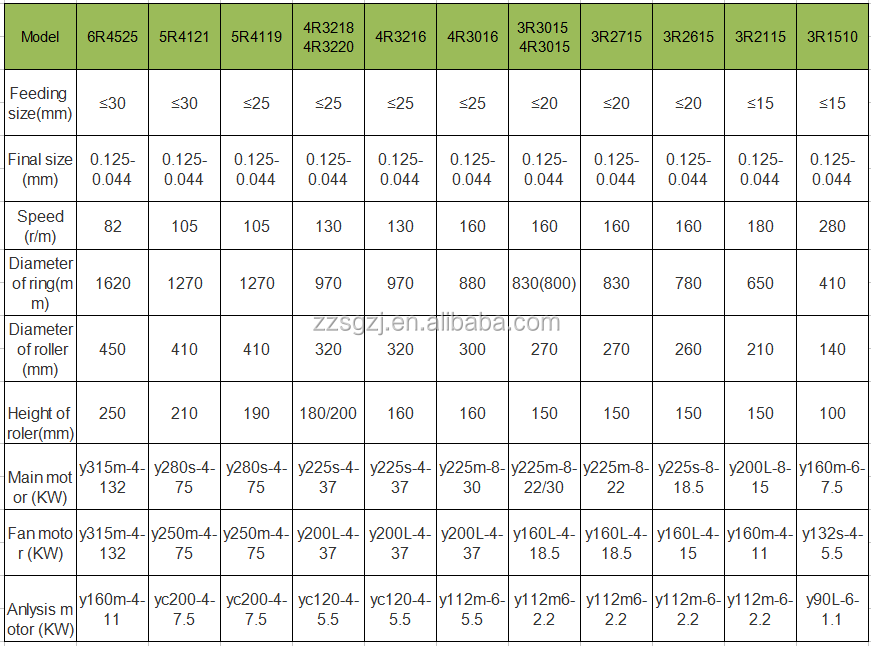

Technical data of Raymond mill factory


Product details

Packaging & Shipping



Company Information

 Zhengzhou Shuguang Heavy Machinery Co.Ltd id founded in 1993, which is a specialized enterprise dedicated to R & D and production of the raymond mill, calcium powder machine, all kinds of crushing machines, and mixer. our company by eputation first, service first, customer first is an objective and take integrity as life.
