Industrial ceramic limestone paint dry wet grinding ball mill for gold ore

FOB Reference Price:Get Latest Price
$5,000.00 - $50,000.00 / Sets | 1 Set/Sets (Min. Order)
Power(W):
18.5
Model Number:
900*1800
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 25 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Building Material Shops, Manufacturing Plant, Energy & Mining
Condition:
New
Type:
Ball Mill
Motor Type:
AC Motor
Place of Origin:
Henan, China
Brand Name:
Shuguang
Weight:
2t
Certification:
CE
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
Application:
Cement / Building Materials / Fertilizer / Mineral
The Machines Classification:
Grinding Mill Equipemnt Machine
Product name:
Ball Grinding Mill Machine
Spare Parts Supplying:
Life Long Time Provide
Customize:
Yes
Feeding Size:
≤25MM
Output Size:
0.074-0.4MM
Color:
As The Coustomer's Requirement
Name:
forged steel balls for ball mill/hot sale ball mill cement
Product Certification Verified
CE Certified.
Valid from 2017-10-25 until 2022-10-24
Supply Ability
Supply Ability:
15 Set/Sets per Month
Packaging & Delivery
Packaging Details
forged steel balls for ball mill/hot sale ball mill cement
Container Transport
As the Client's Packing Requirement Or Nude Packing
Port
Qingdao Pory Or Others Port
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 25 To be negotiated
Product Description

Product Application

New type Ball Grinding Mill is a key equipment for milling the materials into powders after they are crushed. It is widely used in cement, the silicate product, new type building material,fire-proof material, chemical fertilizer, black and non-ferrous metal, glass,ceramics and so on, and can make the dry and wet milling on all kinds of ores and other grindability materials.


The ball mill is a horizontal cylindrical rotating device with external gear transmission. The material is uniformly fed into the mill bin by the feeding device through the hollow shaft of the feeding material. The bin has a step liner or a corrugated liner, and the steel ball of different specifications is built therein. The cylinder rotates to generate centrifugal force, and the steel ball is brought to a certain height and then falls, causing heavy impact and grinding on the material.


Type of Ball Grinding Mill
Energy-saving ball mill, cone ball mill, Ball Grinding Mill , batch ball mill, rod ball mill, grid ball mill, overflow type ball mill,tube ball mill, dry-type ball mill, wet ball mill, intermittence ball mill, etc.

Technical & Features

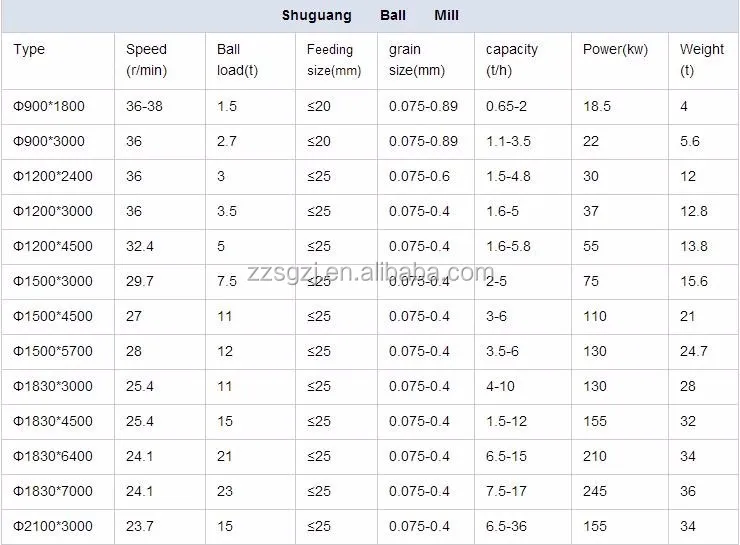

Technical

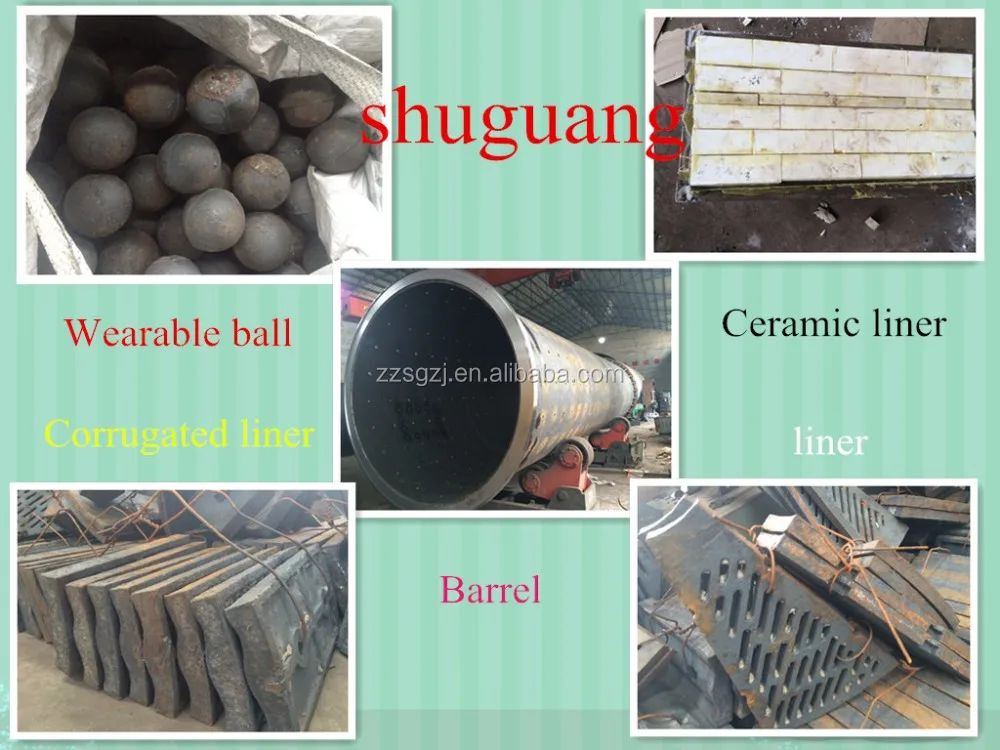

Detailed Images

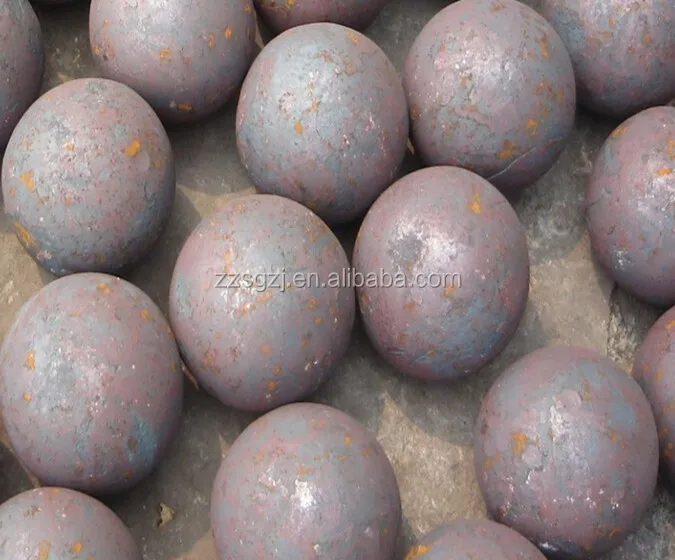

Ball Mill Balls

Made of high wear-resistant material, it has stronger wear resistance, longer service life.And it can reduce replacement cost and improve economic efficiency.

Liner

Advanced process treatment can withstand greater impact strength, maintain the surface shape of liner for a long time, reduce the deformation and wear of liner.

Ceramic liner

Good abrasion resistance, low resistance to operation, corrosion resistance, anti-scaling, good temperature resistance and heat-resistant scouring performance

Ball Mill Barrel

The barrel made by us has no defects such as deformation, crack, depression and welding leakage. It has the advantages of impact resistance and long service life.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
Packing & Delivery
Packaging
Size
1200(D)*4500(L)MM
Weight
13.8T
Packaging Details
This is the cement production line to Peru. The machine model is: 1200*4500
Packaging
Size
2100(D)*7500MM(L)
Weight
36 T
Packaging Details
This is the cement production line to Peru. The machine model is: 2100*7500

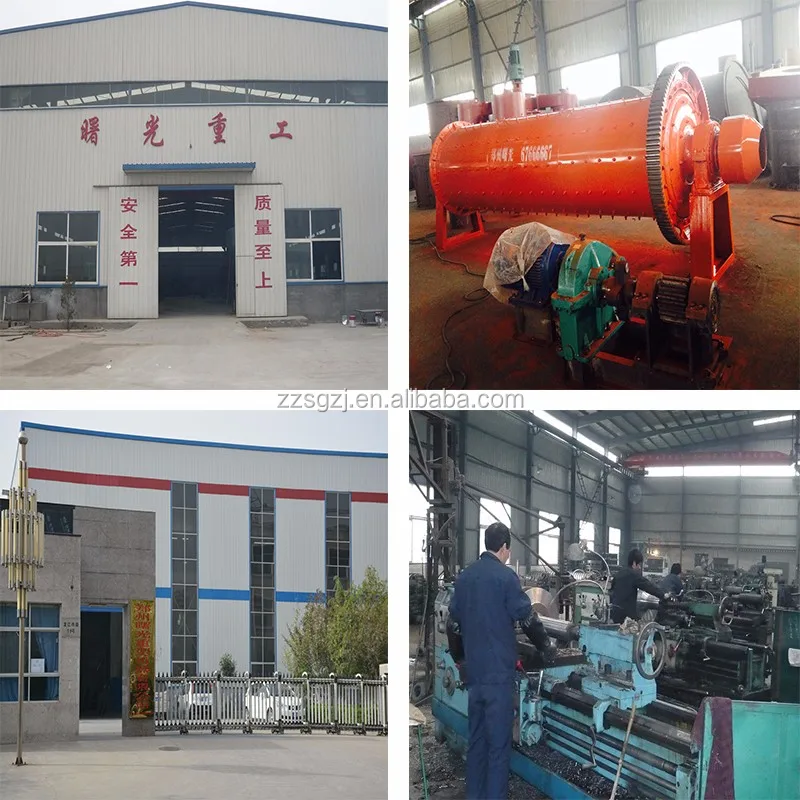

Our Company

Company Introduction

Zhengzhou Shuguang Heavy Machinery Co.Ltd id founded in 1993, which is a specialized enterprise dedicated to R & D and production of the raymond mill, calcium powder machine, all kinds of crushing machines, and mixer. our company by eputation first, service first, customer first is an objective and take integrity as life.All for customer's satisfaction efforts, all for the company's long term healthy development efforts. We solemnly promise that we will depelope us with good quality and credible after sale service! We sincerely welcome you to our company and give us suggestions and directions!!!

FAQ & Solve Failure

About Factory & Company

Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year.

Q: How long is the warranty of your equipment? Do you supply spare parts?
A: Our warranty period is one year generally. We can supply spare parts.

Q: Do you provide after-sale service?
A: Yes. We have a professional after-sale service team to promptly and thoroughly solve your problems.

Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.

Q: Are you trading company or manufacturer?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 10-15 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide free design solution?
A: Yes, we could offer design solution for free.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

About Failure To Solve

1. When the ball mill is running, there is a regular tapping sound, and the stereo is very large.
Some of the liner bolts are not tightened, and when the ball mill is rotated, the liner taps the ball mill.
Judge the lining of the ball mill according to the sound, find loose bolts and tighten it.


2. The ball mill and the motor bearing temperature rise, exceed the regulation.
Use hand to try to feel the bearing is local or all temperature is too high, from the following several check processing ball mill.


Lubricate points, the lubricants are used in accordance with the manufacturer's instructions.
Metamorphism.
Blockage, or lubricants do not go directly to the lubrication point, the amount of oil does not cause heat.
1 third to 1/2 of the void is more appropriate.
The above problems, according to its reasons, only the side clearance of the bearing shell is too small, or at the bottom of the contact Angle is too big, must use grinding cylinder hydraulic one thousand jins bumps, take out from one side of shaft bearing, blow grind tile edging separately.


3. Ball mill reducer bearing heating:
In addition to the ball mill bearing temperature rise check, should check the air hole of the reducer is blocked, to dredge the vent hole.



4. After the motor belt of the ball mill is started, vibration occurs, the main reason is:
Bearing outer ring activities.


Treatment: adjust the clearance of the wheel to make the two axis concentric.
The coupling bolts of the coupling are fixed with equal moments.
When the rotor is unbalanced, the ball mill rotor is drawn out for a separate balance.

5. Vibration of ball mill reducer to drive the grinding machine:
Mill lining board installation, no secondary grouting, or after the second grouting anchor bolt fastening is good, no use hoist rotating grinding cylinder, the displacement of end mill cylinder body, and two axis is not always online, after making the reducer drives the mill and vibration generation.


Treatment method: to adjust the axis of the ball mill grinder and reducer axis in the same plane axis.
Large ball mill has large volume and heavy weight, which causes the foundation to sink.
Displacement.
Monitoring settlement points on the base;
When the observation is made, the sink is observed and adjusted.



6. Abnormal sound of ball mill speed reducer:
The sound of the normal operation of the ball mill reducer should be uniform and smooth.
Friction gear such as a slight tapping, hoarse voice, no significant changes in operation, can continue to observe and find out the reason, parking ball mill processing, such as voice is more and more big, should immediately stop the ball mill for inspection.



It is important to note that the balance of the ball mill reducer wheel not according to stipulations of meshing teeth with middle wheel elevation installation, can cause the intermediate shaft on one side of the ball mill of high-speed shaft pinion driven wheel, ball mill and intermediate shaft pinion drive the balance wheel, ball mill balance wheel is turned to drive on the other side of the intermediate shaft, the ball mill reducer without the formation of both rotation, some sound, this is dangerous.
